Дизельный генератор
Aksa APD 660 BD

Модель : APD 660 BD
Двигатель : BAUDOUIN
Модель панели управления : DSE 7320
О продукте

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Сертификаты

- TS ISO 8528

- CE

- SZUTEST

- 2000/14/EC

Общие Характеристики
Model Name APD 660 BD
Frequency (Hz) 50
Fuel Type Diesel
Engine Made and Model BAUDOUIN - 8M21G660/5
Alternator Made and Model Aksa - AK 6480
Control Panel Model DSE 7320

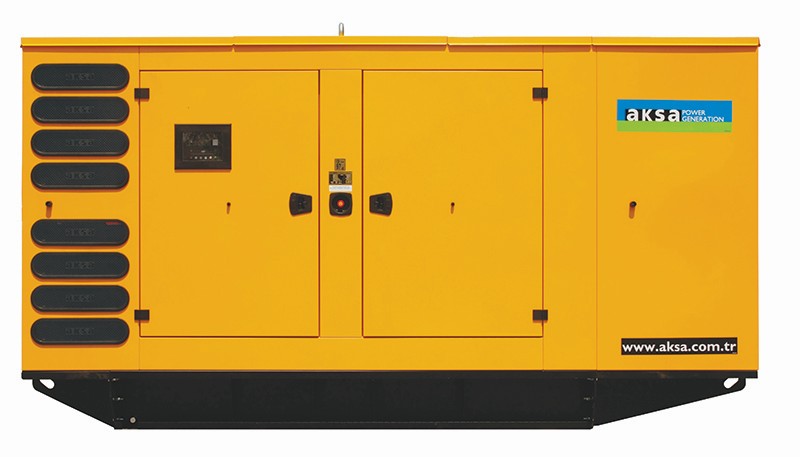

Canopy MS 80
3 Phase,50 Hz, PF 0,8
VOLTAGESTANDBY RATING (ESP)PRIME RATING (PRP)Standby Amper
kVAkWkVAkW
400/231 660 528.00 600 480.00 952.66


STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
Особенности двигателя
Engine BAUDOUIN
Engine Model 8M21G660/5
NO. OF CYLINDERS AND BUILD 8 cylinders - V type
BORE AND STROKEmm 127 X 165
TOTAL DISPLACEMENTL 16.72
Aspiration Turbo Charged and Air to Air AfterCooled
COMPRESSION RATIO 15:1
RATED SPEED (RPM)d/dk 1500
OIL CAPACITYL 45
Standby Power (kW/HP) 580/778
Prime Power 530/711
Block Heater QTY
  1
Block Heater Power (Watt)
  3000
Fuel Type
  Diesel
Injection Type and System
  Direct
Type of Fuel Pump
  HPCR (High Pressure Common Rail)
Governor System
  ECU
Operating Voltage (Vdc)
  24 Vdc
Battery and Capacity (Qty/Ah)
  2x143
Charge Alternator (A)
  70
Cooling Method
  Water Cooled
Cooling Fan Air Flow (m3/min)
  800
Coolant Capacity (engine only / with radiator) (lt)
  31/101
Air Filter
  Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
  124.2
Fuel Cons. Prime With %75 Load (lt/hr)
  95.4
Fuel Cons. Prime With %50 Load (lt/hr)
  64.7
Тип Алтернатора
Manufacturer Aksa
Alternator Made and Model AK 6480
Frequency (Hz)Hz 50
Power (kVA)kVA 600
DESIGN   Brushless
VOLTAGEV 400
Phase 3
A.V.R. SX440
Voltage Regulation(+/-) 1
Insulation System H
Protection IP22
Rated Power Factor 0.8
WEIGHT COMP. GENERATOR (Kg) 1543
COOLING AIR (m³/min)m3 62.1
Вес и размер
Open TypeDRY WEIGHT (kg.)
(kg.)
LENGTH
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
5000 3217 1550 1998 850
CANOPYDRY WEIGHT (kg.)
(kg.)
LENGTH
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
MS 80
  4807 1606 2485 850
Стандартные функции

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

Оборудование на заказ

ENGINE
• Fuel-Water Seperator Filter
• Oil heater

ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker


CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH
• Three Pole Contactor
• Four Pole Contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES
• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Automatic transfer switch
