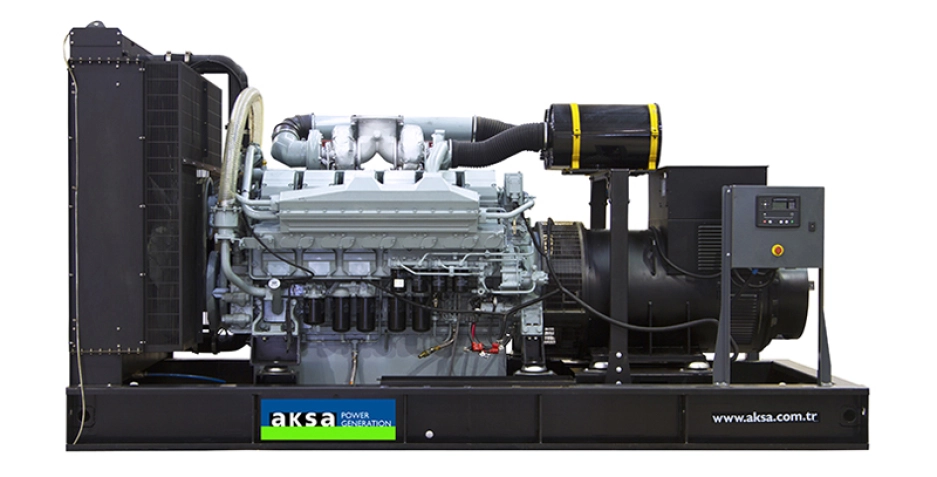

APD 850 M
Engine: MITSUBISHI
Control panel model: DSE 7320
Frequency: 50 Hz
Prime power (PRP) 775 kVA 620 kW
Standby power (ESP) 853 kVA 682.4 kW
General specifications
- Model name APD 850 M
- Frequency (Hz) 50
- Fuel type Diesel
- Engine brand and model MITSUBISHI S12A2-PTA
- Control panel model DSE 7320
Standby power (ESP): Used to supply power to a varying electrical load in the event of a reliable utility power failure. ESP is compatible with ISO 8528. Overload is not permitted.
Prime power (PRP): Used for supplying electrical power to a varying electrical load for an unlimited number of annual operating hours. PRP is compatible with ISO 8528. In accordance with ISO 3046, 1 hour of permissible 10% overload is allowed during every 12-hour operating period.
For stationary installations used as a backup or continuous power source, Aksa generator sets provide reliable and highly efficient operation. All manufactured generator sets undergo preliminary product testing and factory production testing before delivery.
Certificates:
- TS ISO 8528
- TS ISO 9001-2008
- CE
- SZUTEST
- 2000/14/EC
Water-cooled diesel engine designed for heavy-duty applications
Radiator with mechanical fan
Protective guard for the fan and rotating parts
Electric starter and alternator battery charger
Lead-acid starting battery with cables
Engine enclosure
Base frame with integrated fuel tank and anti-vibration mounts
Fuel system hose
Single-bearing alternator, Class H
Silencer and flexible steel compensator supplied separately
ENGINE
- Remote radiator
- Fuel/water separator filter
- Oil heater
ALTERNATOR
- Anti-condensation heater
- Output circuit breaker
CONTROL SYSTEM
- Automatic synchronization and power management system
- Parallel operation system with the external grid
- Grid synchronization system
- Remote alarm panel
- Emergency engine stop
- Remote control via modem
- Grounding connection point
- Charging ammeter
TRANSFER SWITCH
- Three- or four-pole contactor
- Three- or four-pole motorized circuit breaker
OTHER ACCESSORIES
- Charging current monitoring
- Automatic fuel transfer system
- Manual oil drain pump
- Fuel level sensors
- Silencer

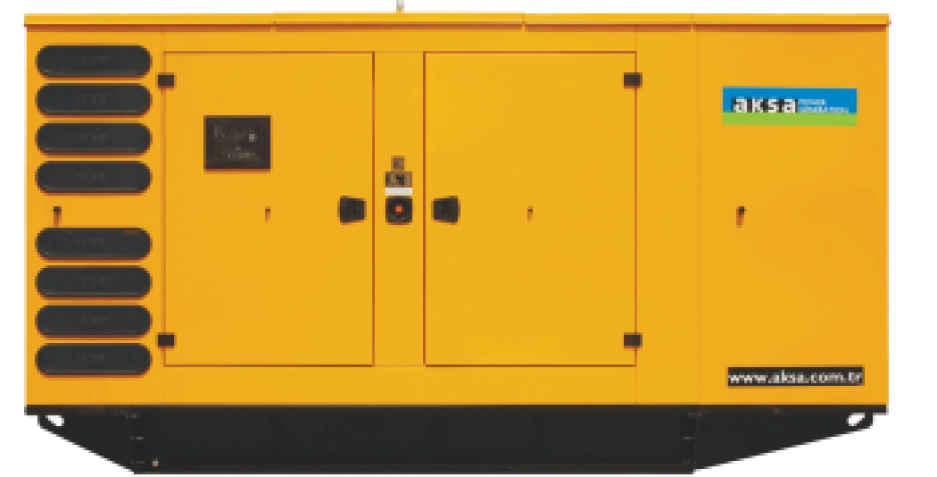

- Canopy: weather protection and sound attenuation
- Air duct adapter (in front of the radiator)
- Motorized fresh air intake and exhaust louvers
- Sound attenuation air chamber
- Maintenance kit
- Maintenance kit (1500/3000 operating hours)
- Antifreeze and engine lubricating oil (for operation at -30°C)
