Disel generator

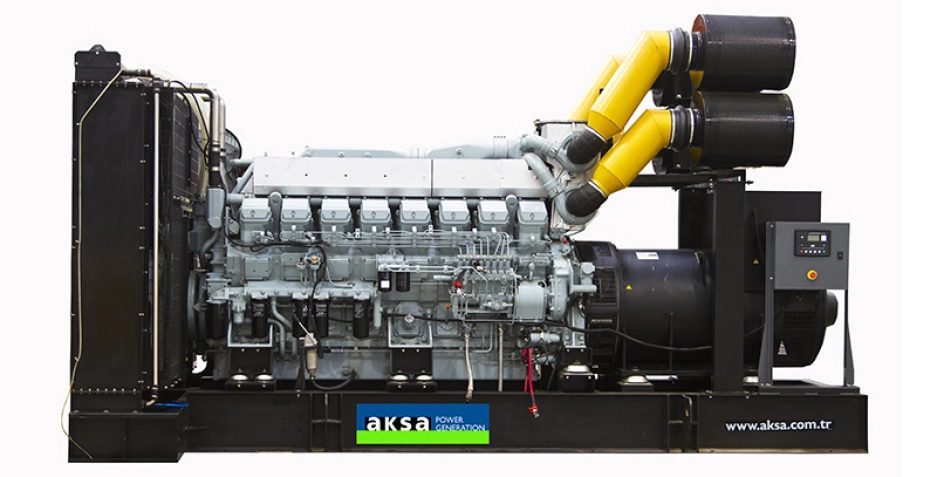

Aksa APD 2100 M

Model : APD 2100 M
Product : MITSUBISHI
CONTROL SYSTEM : DSE 7320
Introduction

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Сertificate
  TS ISO 8528
  TS ISO 9001-2008
  CE
  SZUTEST
  2000/14/EC
General Characteristics
Model Name APD 2100 M
Frequency (Hz) 50
Fuel Type Diesel
Engine Made and Model MITSUBISHI - S16R-PTA2
Alternator Made and Model Mecc Alte - ECO 46-1L/4 A
Control Panel Model DSE 7320
Canopy AK 99 - External Removable Silencer
3 Phase, 50 Hz, PF 0.8
VOLTAGESTANDBY RATING (ESP) (ESP)PRIME RATING (PRP) (PRP)
kVAkWkVAkWAmp
400/231 2100 1680.0 1875 1500.0 3031.18
STANDBY RATING (ESP) (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528. Overload is not allowed.

PRIME RATING (PRP) (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation,in accordance with ISO 3046.
Engine Specifications
Engine MITSUBISHI
Engine Model S16R-PTA2
NO. OF CYLINDERS AND BUILD 16 cylinders - V type
BORE AND STROKEmm 170 X 180
TOTAL DISPLACEMENTL 65.37
Aspiration Turbo Charged and After Cooled
COMPRESSION RATIO 13.5:1
RATED SPEED (RPM)d/dk 1500
OIL CAPACITYL 230
Standby Power (kW/HP) 1790/2399 kW
Prime Power (kW/HP) 1630/2185 kW
Block Heater QTY
  2
Block Heater Power (Watt)
  3000
Fuel Type
  Diesel
Injection Type and System
  Direct
Type of Fuel Pump
  Mitsubishi PS8x2 (In-Line)
Governor System
  Electronic
Operating Voltage (Vdc)
  24 Vdc
Battery and Capacity (Qty/Ah)
  4x143
Charge Alternator (A)
  30
Cooling Method
  Water Cooled
Cooling Fan Air Flow (m3/min)
  2040
Coolant Capacity (engine only / with radiator) (lt)
  44.9/445
Air Filter
  Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
  305.1
Fuel Cons. Prime With %75 Load (lt/hr)
  305.1
Fuel Cons. Prime With %50 Load (lt/hr)
  216.2
Alternator Specifications
Manufacturer Mecc Alte
Alternator Made and Model ECO 46-1L/4 A
Frequency (Hz)Hz 50
Power (kVA)kVA 2100
DESIGN   Brushless
VOLTAGEV 400
Phase 3
A.V.R. DER1
Voltage Regulation(+/-) 0.5
Insulation System H
Protection IP23
Rated Power Factor 0.8
COOLING AIR (m³/min)m3 135
Size and Weight
Open TypeDRY WEIGHT (kg.)
(kg.)
LENGHT
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
13100 5220 2250 2960 2000
CANOPYDRY WEIGHT (kg.)
(kg.)
LENGHT
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
AK 99 - External Removable Silencer
18350 9000 2800 3300 2200
Standart Specifications

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
Generators Sets’ can take 100% load at one step according to NFPA110

Optional Equpiments

ENGINE
• Remote Radiator Cooling
• Fuel-Water Seperator Filter
• Oil heater
ALTERNATOR
• Anti-Condensation Heater
• Main line circuit breaker
CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )
• Paralel system with mains.
• Transition synchronization with mains
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor
• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank
• Automatic or manual fuel filling system
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Supplied with oil and coolant - 30 °C
