Disel generator
Aksa APD 1100 M

Model : APD 1100 M
Product : MITSUBISHI
CONTROL SYSTEM : DSE 7320
Introduction

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Сertificate
  TS ISO 8528
  TS ISO 9001-2008
  CE
  SZUTEST
  2000/14/EC
General Characteristics
Model Name APD 1100 M
Frequency (Hz) 50
Fuel Type Diesel
Engine Made and Model MITSUBISHI - S12H-PTA
Alternator Made and Model Mecc Alte - ECO 43-1M/4 A
Control Panel Model DSE 7320
Canopy AK 96 - External Revomable Silencer
3 Phase, 50 Hz, PF 0.8
VOLTAGESTANDBY RATING (ESP) (ESP)PRIME RATING (PRP) (PRP)
kVAkWkVAkWAmp
400/231 1100 880.0 1030 824.0 1587.76
STANDBY RATING (ESP) (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528. Overload is not allowed.

PRIME RATING (PRP) (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation,in accordance with ISO 3046.
Engine Specifications
Engine MITSUBISHI
Engine Model S12H-PTA
NO. OF CYLINDERS AND BUILD 12 cylinders - V type
BORE AND STROKEmm 150 X 175
TOTAL DISPLACEMENTL 33.11
Aspiration Turbo Charged and After Cooled
COMPRESSION RATIO 14.0:1
RATED SPEED (RPM)d/dk 1500
OIL CAPACITYL 200
Standby Power (kW/HP) 1020/1367 kW
Prime Power (kW/HP) 930/1247 kW
Block Heater QTY
  2
Block Heater Power (Watt)
  3000
Fuel Type
  Diesel
Injection Type and System
  Direct
Type of Fuel Pump
  Mistubishi Unit Injector x12
Governor System
  Electronic
Operating Voltage (Vdc)
  24 Vdc
Battery and Capacity (Qty/Ah)
  4x143
Charge Alternator (A)
  30
Cooling Method
  Water Cooled
Cooling Fan Air Flow (m3/min)
  1800
Coolant Capacity (engine only / with radiator) (lt)
  26.4/244
Air Filter
  Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
  216.1
Fuel Cons. Prime With %75 Load (lt/hr)
  168.6
Fuel Cons. Prime With %50 Load (lt/hr)
  118.8
Alternator Specifications
Manufacturer Mecc Alte
Alternator Made and Model ECO 43-1M/4 A
Frequency (Hz)Hz 50
Power (kVA)kVA 1025
DESIGN   4 Pole,  Brushless
VOLTAGEV 400
Phase 3
A.V.R. DSR
Voltage Regulation(+/-) 1
Insulation System H
Protection IP23
Rated Power Factor 0.8
COOLING AIR (m³/min)m3 90
Size and Weight
Open TypeDRY WEIGHT (kg.)
(kg.)
LENGHT
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
8600 4370 2100 2210 1000
CANOPYDRY WEIGHT (kg.)
(kg.)
LENGHT
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)

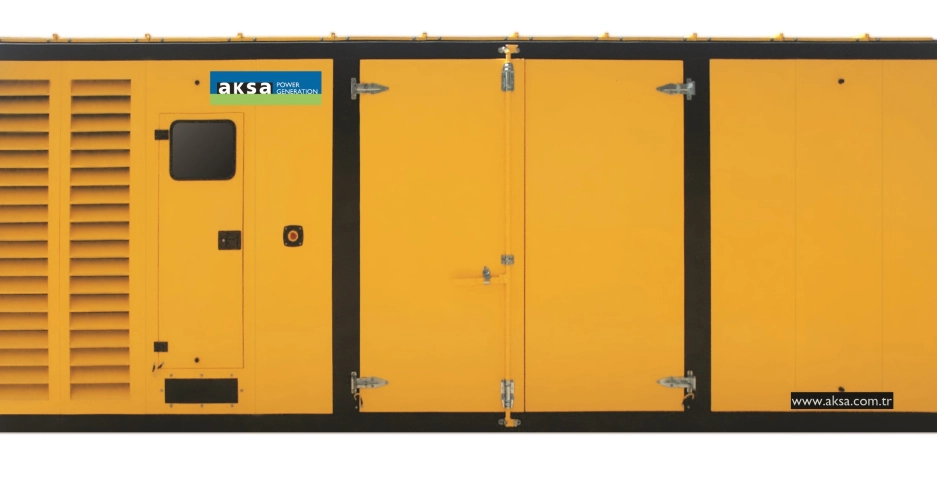

AK 96 - External Revomable Silencer
12250 7500 2300 2500 1500
Standart Specifications

Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
Generators Sets’ can take 100% load at one step according to NFPA110

Optional Equpiments

ENGINE
Remote Radiator Cooling
Fuel-Water Seperator Filter
Oil heater

ALTERNATOR
Anti-Condensation Heater
Main line circuit breaker

CONTROL SYSTEM
Automatic synchronising and power control system ( multi gen-set Parallel )
Paralel system with mains.
Transition synchronization with mains
Remote relay output
Alarm output relays
Remote communication with modem
Earth fault, single set
Charge Ammeter

TRANSFER SWITCH
Three or four pole contactor
Three or four pole motor operated circuit breaker

OTHER ACCESSORIES
Main Fuel Tank
Automatic or manual fuel filling system
Manual oil drain pump
Low and high fuel level alarm
Residential silencer
Enclosure: weater protective or sound attenuated
Duct adapter ( on radiator)
Inlet and outlet motorised louvers
Inlet and outlet acoustic baffles
Tool kit for maintenance
1500/3000 hours maintenance kit
Supplied with oil and coolant - 30 °C
