Disel generator

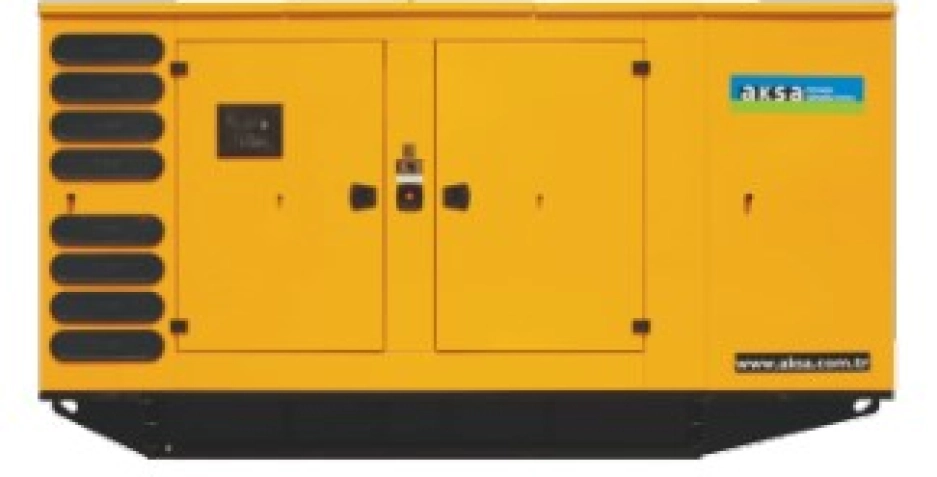

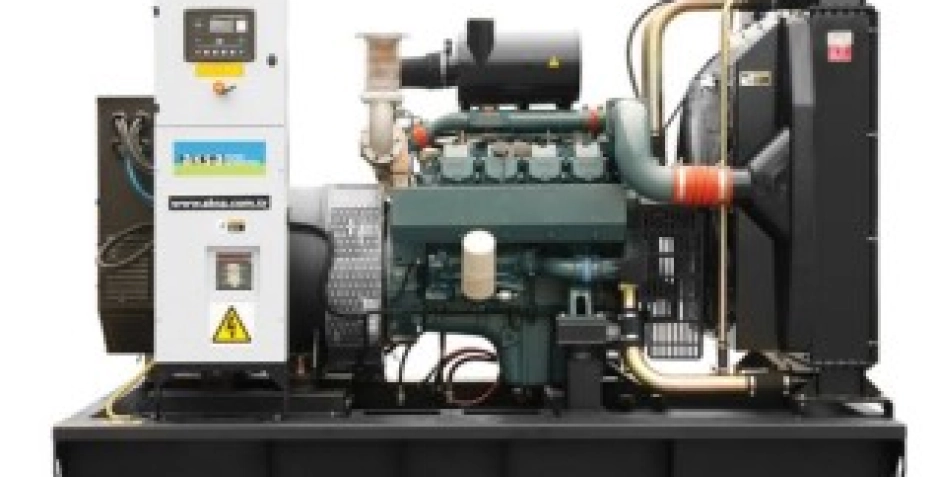

Aksa AD 1015

Model : AD 1015
Product : HYUNDAI
CONTROL SYSTEM : DSE 7320
Introduction

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Сertificate

- TS ISO 8528

- TS ISO 9001-2008

- CE

- SZUTEST

- 2000/14/EC

General Characteristics

Model Name AD 1015

Frequency (Hz) 50

Fuel Type Diesel

Engine Made and Model HYUNDAI DP222CC

Alternator Made and Model AK 7740

Control Panel Model DSE 7320

Canopy MS 88


3 Phase,50 Hz, PF 0,8

STANDBY RATING (ESP) Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

Engine Specifications

Engine HYUNDAI

Engine Model DP222CC

Number of Cylinder (L) 12 cylinders - V type

Bore (mm.) 128

Stroke (mm.) 142

Displacement (lt.) 21.927

Aspiration Turbo Charged and Intercooled (Air to Air)

Compression Ratio 14.6:1

RPM (d/dk) 1500

Oil Capacity (Total With Filter) (lt) 75

Standby Power (kW/HP) 875/1190

Prime Power 790/1074

Block Heater QTY 1

Block Heater Power (Watt) 3000

Fuel Type Diesel

Injection Type and System Direct

Type of Fuel Pump Bosch C / Rail

Governor System ECU

Operating Voltage (Vdc) 24 Vdc

Battery and Capacity (Qty/Ah) 2x143

Charge Alternator (A) 45

Cooling Method Water Cooled

Cooling Fan Air Flow (m3/min) 1266

Coolant Capacity (engine only / with radiator) (lt) 24/73

Air Filter Dry Type

Fuel Cons. Prime With %100 Load (lt/hr) 192

Fuel Cons. Prime With %75 Load (lt/hr) 162

Fuel Cons. Prime With %50 Load (lt/hr) 110

Alternator Specifications

Manufacturer Aksa

Alternator Made and Model AK 7740

Frequency (Hz) 50

Power (kVA) 960

VOLTAGE (V) 400

Phase 3

A.V.R. MX341

Voltage Regulation (+/-)1%%

Insulation System H

Protection IP22

Rated Power Factor 0,8

WEIGHT COMP. GENERATOR (Kg) 2233

COOLING AIR (m³/min) 130,8

Size and Weight

Gen.Set Canopy Dimensions (mm)

LENGTH 5513

WIDTH 2260

HEIGHT 2502

DRY WEIGHT (kg.) 7220

TANK CAPACITY (lt.) 1600

Standart Specifications

- Water cooled, Diesel engine

- Radiator with mechanical fan

- Protective grille for rotating and hot parts

- Electric starter and charge alternator

- Starting battery (with lead acid) including rack and cables

- Engine coolant heater

- Base frame design incorporates an integral fuel tank and anti-vibration isolators

- Flexible fuel connection hoses

- Single bearing, class H alternator

- Industrial exhaust silencer and steel bellows supplied separately(for open sets)

- Static battery charger

- Manual for application and installation

Optional Equpiments

ENGINE

Fuel-Water Seperator Filter

Oil heater

ALTERNATOR

Anti-Condensation Heater

Over sized alternator

PMG excitation + AVR

Main line circuit breaker

CONTROL SYSTEM

Automatic synchronising and power control system ( multi gen-set Parallel )

Transition synchronization with mains

Remote annunciator panel

Remote relay output

Alarm output relays

Remote communication with modem

Earth fault, single set

Charge Ammeter

TRANSFER SWITCH

Three Pole Contactor

Four Pole Contactor

Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

Main Fuel Tank

Automatic or manual fuel filling system

Manual oil drain pump

Electrical oil drain pump

Low and high fuel level alarm

Residential silencer

Enclosure: weater protective or sound attenuated

Duct adapter ( on radiator)

Inlet and outlet motorised louvers

Inlet and outlet acoustic baffles

Trailer

Tool kit for maintenance

Automatic transfer switch
