Disel generator
Aksa APD 43 C

Model : APD 43 C
Product : CUMMINS
CONTROL SYSTEM : P 602
Introduction

Aksa power generation system, providing optimum performance, reliability, and versaity for stationery standby, prime power, and continuous duty applications. All generator sets are prototype tested, factory build, and production tested.

Сertificate
SZUTEST
This generator set is manufactured in facilities certified to ISO 9001.
ISO 9001
This generator set is manufactured in facilities certified to ISO 9001.
2000/14/EC
Enclosed product is tested according to EU noise legislation 2000/14/EC
General Characteristics
3 Phase Ratings, 50 Hz, PF 0,8
VoltageStandby Rating (ESP)Prime Rating (PRP)
kVAkWkVAkWAmp
400/230 43 34.4 39 31.2 56

Standby Rating (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528. Overload is not allowed.

Prime Rating (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation,in accordance with ISO 3046.

Engine Specifications
Manufacturer Cummins
Model 4BT3,9-G2
No. of Cylinders and Build 4 Cylinder, In Line
Aspiration and Cooling Turbo Charged
Maximum Standby Power1500 rpm 40 kW [54 HP]
Total DisplacementL 3.9
Bore and Strokemm 102 x 120
Compression Ratio 17,3:1
Rated Speed (rpm)rpm 1500
Governor Electronic
Oil CapacityL 11
Coolant CapacityL 19.2
Intake Air Flowm³ /min. 2.7
Radiator Cooling Airm³ /min. 120
Exhaust Gas Flowm³ /min. 6.5
Start System 24
Fuel Consumption%100 (L/h) 9.3
Alternator Specifications
Make Aksa
Model AK232
FrequencyHz 50
PowerKva 40
Design Brushless, 4 poles
Cos Phi 0.8
Phase 3
VoltageV 400/230
Insulation Class H
Excitation System Electronic ( AVR )
Size and Weight

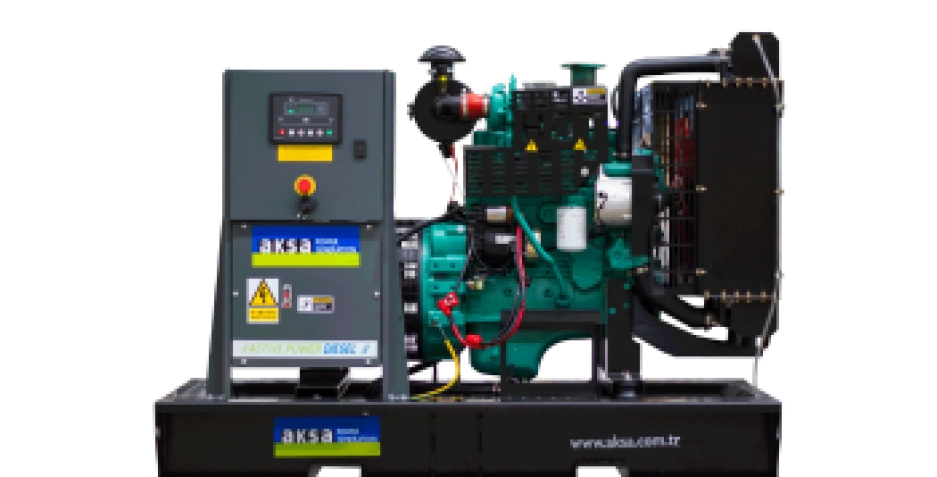

Open TypeDry Weight
(kg.)
Lenght
(mm.)
Width
(mm.)
Height
(mm.)
Tank Capacity(L)
860 1,860 900 1,380 154

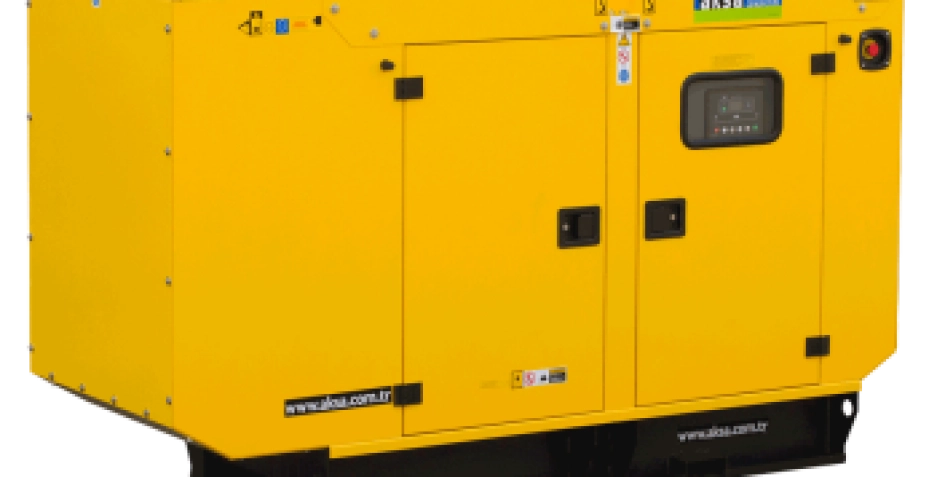

CanopyDry Weight
(kg.)
Lenght
(mm.)
Width
(mm.)
Height
(mm.)
Tank Capacity(L)
ASM 4A  1240 2,500 970 1560 154
Standart Specifications

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

Optional Equpiments

ENGINE

  • Remote Radiator Cooling
  • Fuel-Water Seperator Filter

ALTERNATOR

  • Anti-Condensation Heater
  • Main line circuit breaker

CONTROL SYSTEM

  • Charge Ammeter

TRANSFER SWITCH

  • Three or four pole contactor
  • Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

  • Main Fuel Tank
  • Manual oil drain pump
  • Residential silencer
  • Enclosure: weater protective or sound attenuated
  • Trailer
  • Tool kit for maintenance
