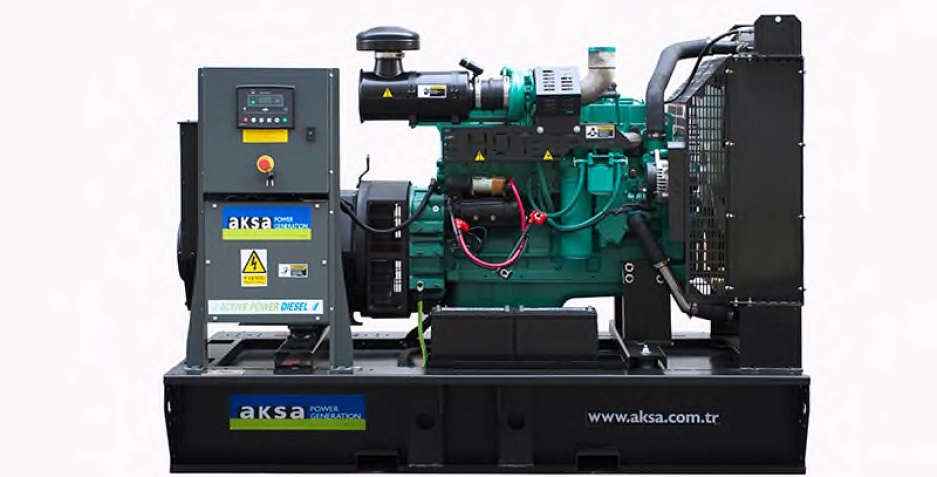

APD 220 C
General specifications
- Model name APD 220 C
- Frequency (Hz) 50
- Fuel type Diesel
- Engine brand and model CUMMINS 6CTAA8.3G2
- Control panel model DSE 7320

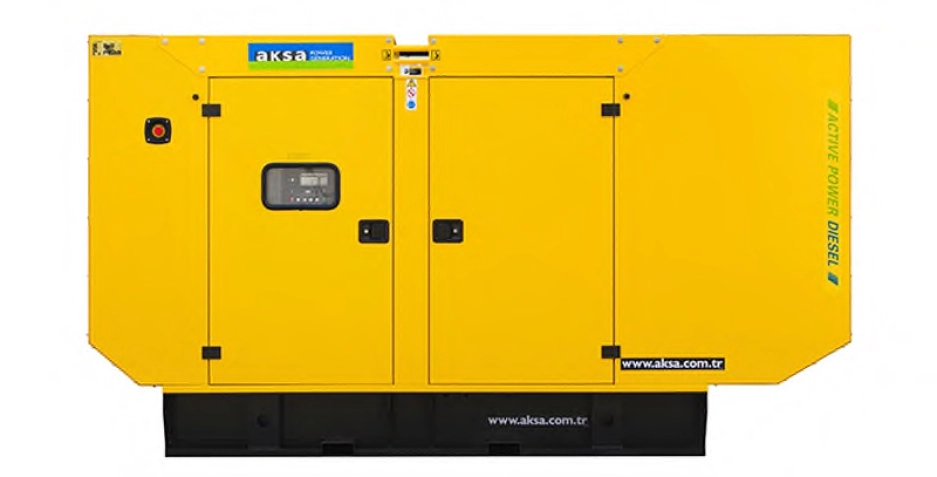

Aksa sound-attenuated and weatherproof generator enclosures comply with all noise level requirements and provide optimal protection against adverse weather conditions and environmental exposure, reflecting the expertise of our acoustic engineering specialists. Our modular sound-attenuated enclosures (8–275 kVA) are installed directly on open generator sets, providing easy access for maintenance and general repairs, while interchangeable components allow on-site servicing. The enclosures are designed to optimize the cooling performance of the generator set, ensuring compliance with the generator's rated performance and reliable operation in all weather conditions.
Certificates:
- TS ISO 9001-2008
Microprocessor-based control.
Easy information reading via LCD display.
64 × 132 graphic display, 4-line.
Control of power transfer between the generator and the utility grid.
Manual programming via the front control panel.
Convenient button layout and user-friendly operating system.
Programming via the front control panel.
Remote start capability.
Ability to view the last 5 alarm events stored in memory.
Control buttons: Stop/Reset, Manual, Automatic, Test, Start, and LCD display navigation buttons.
ENGINE
• Fuel/water separator filter
• Oil heater
ALTERNATOR
• Anti-condensation heater
• Output circuit breaker
CONTROL SYSTEM
• Automatic synchronization and power management system
• Parallel operation system with the external grid
• Grid synchronization system
• Remote control panel
• Remote alarm panel
• Emergency engine stop
• Remote control via modem
• Grounding connection point
• Charging ammeter
TRANSFER SWITCH
• Three- or four-pole contactor
• Three- or four-pole motorized circuit breaker
OTHER ACCESSORIES
• Charging current monitoring
• Automatic fuel transfer system
• Electric oil drain pump
• Fuel level sensors
• Silencer
• Canopy: weather protection and sound attenuation
• Air duct adapter (in front of the radiator)
• Sound attenuation air chamber
• Maintenance kit
• Maintenance kit (1500/3000 operating hours)
• Antifreeze and engine lubricating oil (for operation at -30°C)
