Disel generator
Aksa APD 200 C

Model : APD 200 C

Product : CUMMINS

CONTROL SYSTEM : DSE 6020

Introduction

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Сertificate

General Characteristics

Model Name		APD 200 C
Frequency (Hz)		50
Fuel Type		Diesel
Engine Made and Model		CUMMINS - 6CTA8.3G2
Alternator Made and Model		Aksa - AK 4150
Control Panel Model		DSE 6020
Canopy		ASM 6

3 Phase, 50 Hz, PF 0.8

VOLTAGE	STANDBY RATING (ESP) (ESP)		PRIME RATING (PRP) (PRP)
VOLTAGE	kVA	kW	kVA	kW	Amp
400/231	200	160	180	144	288.68

STANDBY RATING (ESP) (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528. Overload is not allowed.

PRIME RATING (PRP) (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation,in accordance with ISO 3046.

Engine Specifications

Manufacturer		Aksa
Alternator Made and Model		AK 4150
Frequency (Hz)	Hz	50
Power (kVA)	kVA	187.5
DESIGN		Brushless
VOLTAGE	V	400
Phase		3
A.V.R.		AS460
Voltage Regulation	(+/-)	1,5%
Insulation System		H
Protection		IP22
Rated Power Factor		0.8
COOLING AIR (m³/min)	m3	30,84

Alternator Specifications

Производитель		Aksa
генератор переменного тока марки и модели		AK 4150
Частота (Гц)	Hz	50
Мощность (кВА)	kVA	187.5
дизайн		Brushless
Напряжение (В)	V	400
фаза		3
Регулятор напряжения		AS460
Система возбуждения	(+/-)	1,5%
Класс изоляции		H
класс защиты		IP22
Активная мощность		0.8
охлаждающий воздух	m3	30,84

Size and Weight

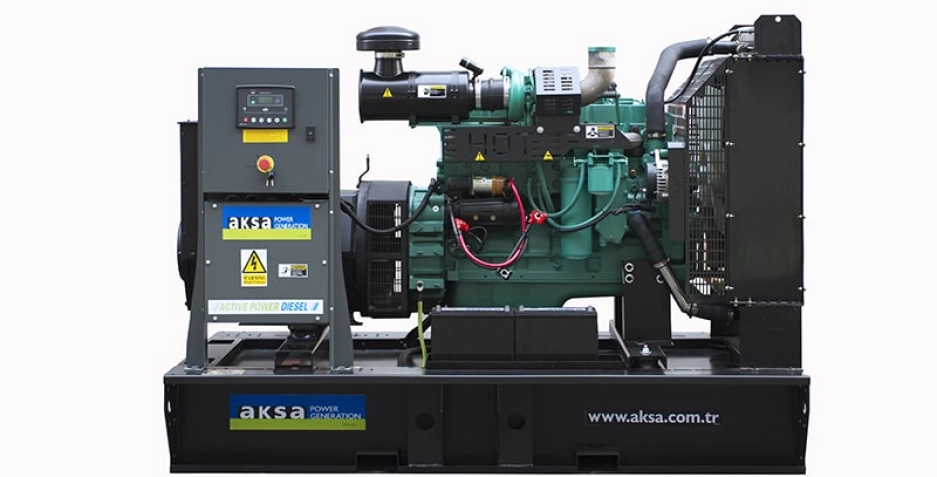

Open Type	DRY WEIGHT (kg.) (kg.)	LENGHT (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
	1780	2336	1100	1652	350

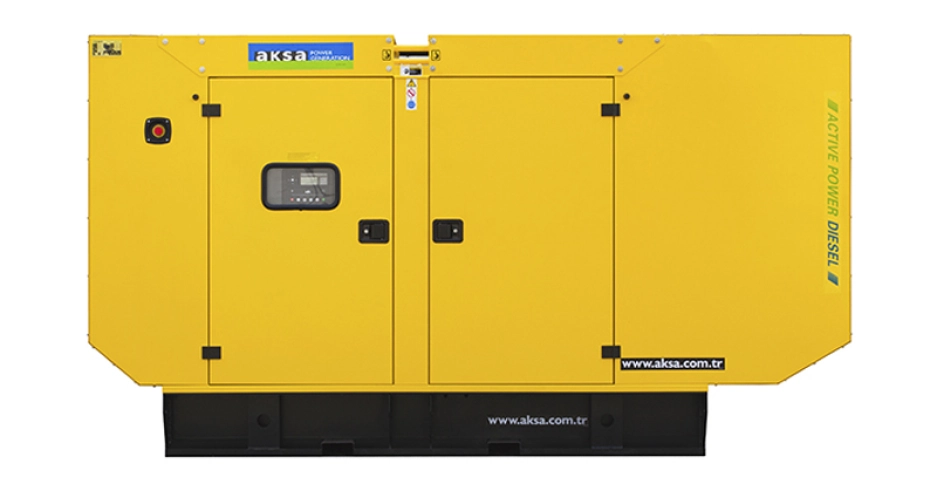

CANOPY	DRY WEIGHT (kg.) (kg.)	LENGHT (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
ASM 6	2280	3265	1163	1858	350

Standart Specifications

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
