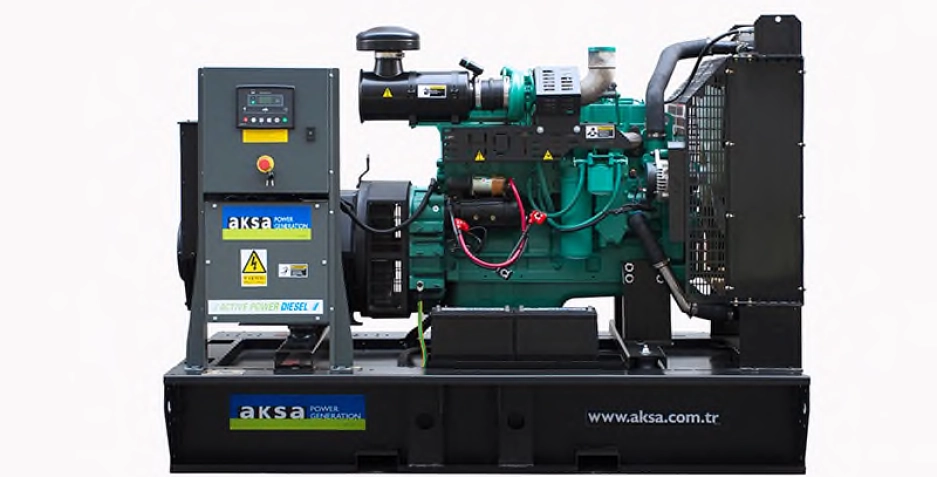

APD 175 C
General specifications
- Model name APD 175 C
- Frequency (Hz) 50
- Fuel type Diesel
- Engine brand and model CUMMINS 6BTAA5.9-G12
- Control panel model DSE 6120
For stationary installations used as a backup or continuous power source, Aksa generator sets provide reliable and highly efficient operation. All manufactured generator sets undergo preliminary product testing and factory production testing before delivery.
Certificates:
- TS ISO 8528
- TS ISO 9001-2008
- CE
- SZUTEST
- 2000/14/EC
Microprocessor-based control.
Easy information reading via LCD display.
64 × 132 graphic display, 4-line.
Control of power transfer between the generator and the utility grid.
Manual programming via the front control panel.
Convenient button layout and user-friendly operating system.
Programming via the front control panel.
Remote start capability.
Ability to view the last 5 alarm events stored in memory.
Control buttons: Stop/Reset, Manual, Automatic, Test, Start, and LCD display navigation buttons.
ENGINE
• Fuel/water separator filter
• Oil heater
ALTERNATOR
• Anti-condensation heater
• Output circuit breaker
CONTROL SYSTEM
• Automatic synchronization and power management system
• Parallel operation system with the external grid
• Grid synchronization system
• Remote control panel
• Remote alarm panel
• Emergency engine stop
• Remote control via modem
• Grounding connection point
• Charging ammeter
TRANSFER SWITCH
• Three- or four-pole contactor
• Three- or four-pole motorized circuit breaker
OTHER ACCESSORIES
• Charging current monitoring
• Automatic fuel transfer system
• Electric oil drain pump
• Fuel level sensors
• Silencer

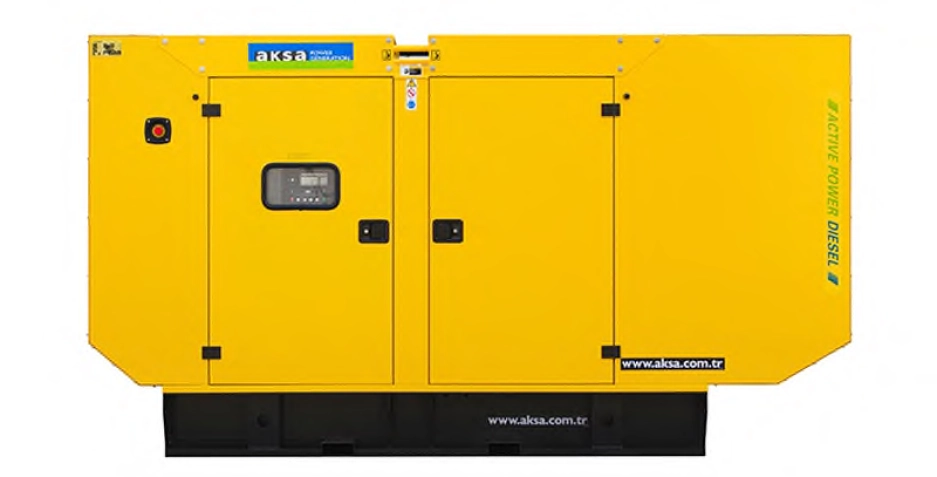

• Canopy: weather protection and sound attenuation
• Air duct adapter (in front of the radiator)
• Sound attenuation air chamber
• Maintenance kit
• Maintenance kit (1500/3000 operating hours)
• Antifreeze and engine lubricating oil (for operation at -30°C)
