Disel generator
Aksa APD 110 C

Model : APD 110 C
Product : CUMMINS
CONTROL SYSTEM : DSE 6020
Introduction

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Сertificate
General Characteristics
Model Name APD 110 C
Frequency (Hz) 50
Fuel Type Diesel
Engine Made and Model CUMMINS - 6BT5.9G2
Alternator Made and Model Aksa - AK 480
Control Panel Model DSE 6020
Canopy ASM 5
3 Phase, 50 Hz, PF 0.8
VOLTAGESTANDBY RATING (ESP) (ESP)PRIME RATING (PRP) (PRP)
kVAkWkVAkWAmp
400/231 110 88 100 80 158.78
STANDBY RATING (ESP) (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528. Overload is not allowed.

PRIME RATING (PRP) (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation,in accordance with ISO 3046.
Engine Specifications
Engine CUMMINS
Engine Model 6BT5.9G2
NO. OF CYLINDERS AND BUILD 6 cylinders - in line
BORE AND STROKEmm 102 X 120
TOTAL DISPLACEMENTL 5,90
Aspiration Turbo Charged
COMPRESSION RATIO 17.3:1
RATED SPEED (RPM)d/dk 1500
OIL CAPACITYL 13
Standby Power (kW/HP) 92/123 kW
Prime Power (kW/HP) 86/115 kW
Block Heater QTY
  1
Block Heater Power (Watt)
  1000
Fuel Type
  Diesel
Injection Type and System
  Direct
Type of Fuel Pump
  BYC A
Governor System
  Electronic
Operating Voltage (Vdc)
  24 Vdc
Battery and Capacity (Qty/Ah)
  2x60
Cooling Method
  Water Cooled
Cooling Fan Air Flow (m3/min)
  136
Coolant Capacity (engine only / with radiator) (lt)
  32,9
Air Filter
  Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
  22
Fuel Cons. Prime With %75 Load (lt/hr)
  17
Fuel Cons. Prime With %50 Load (lt/hr)
  11
Alternator Specifications
Manufacturer Aksa
Alternator Made and Model AK 480
Frequency (Hz)Hz 50
Power (kVA)kVA 100
DESIGN   Brushless
VOLTAGEV 400
Phase 3
A.V.R. SX460
Voltage Regulation(+/-) 1%
Insulation System H
Protection IP22
Rated Power Factor 0.8
COOLING AIR (m³/min)m3 30,84
Size and Weight

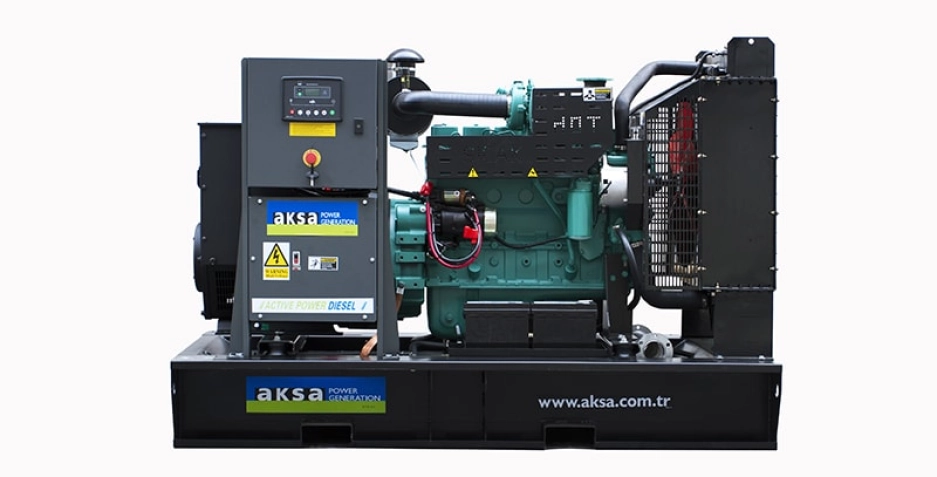

Open TypeDRY WEIGHT (kg.)
(kg.)
LENGHT
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
1280 2150 1000 1469 195
CANOPYDRY WEIGHT (kg.)
(kg.)
LENGHT
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)

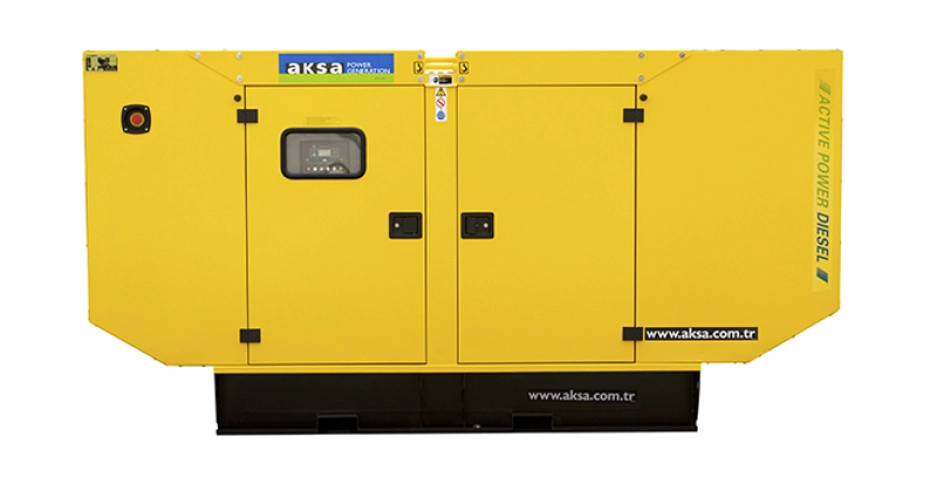

ASM 5
1700 3116 1063 1715 195
Standart Specifications

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

Optional Equpiments

ENGINE

  • Remote Radiator Cooling
  • Fuel-Water Seperator Filter
  • Oil heater

ALTERNATOR

  • Anti-Condensation Heater
  • Main line circuit breaker

CONTROL SYSTEM

  • Charge Ammeter

TRANSFER SWITCH

  • Three or four pole contactor
  • Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

  • Main Fuel Tank
  • Manual oil drain pump
  • Enclosure: weater protective or sound attenuated
  • Trailer
  • Tool kit for maintenance
