Disel generator
Aksa AC 700

Model : AC 700
Product : CUMMINS
CONTROL SYSTEM : DSE 7320
Introduction

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Сertificate
  TS ISO 8528
  CE
  SZUTEST
  2000/14/EC
General Characteristics
Model Name AC 700
Frequency (Hz) 50
Fuel Type Diesel
Engine Made and Model CUMMINS - VTA28-G5
Alternator Made and Model Mecc Alte - ECO 40-2L/4 B
Control Panel Model DSE 7320
Canopy MS 85
3 Phase, 50 Hz, PF 0.8
VOLTAGESTANDBY RATING (ESP) (ESP)PRIME RATING (PRP) (PRP)
kVAkWkVAkWAmp
400/231 700 560.0 638 510.4 1010.39
STANDBY RATING (ESP) (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528. Overload is not allowed.

PRIME RATING (PRP) (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation,in accordance with ISO 3046.
Engine Specifications
Engine CUMMINS
Engine Model VTA28-G5
NO. OF CYLINDERS AND BUILD 12 cylinders - V type
BORE AND STROKEmm 140 X 152
TOTAL DISPLACEMENTL 28
Aspiration Turbo Charged and After Cooled
COMPRESSION RATIO 13.1:1
RATED SPEED (RPM)d/dk 1500
OIL CAPACITYL 83
Standby Power (kW/HP) 621/820 kW
Prime Power (kW/HP) 560/750 kW
Block Heater QTY
  1
Block Heater Power (Watt)
  3000
Fuel Type
  Diesel
Injection Type and System
  Direct
Type of Fuel Pump
  Cummins PT
Governor System
  Electronic
Operating Voltage (Vdc)
  24 Vdc
Battery and Capacity (Qty/Ah)
  2x143
Charge Alternator (A)
  35
Cooling Method
  Water Cooled
Cooling Fan Air Flow (m3/min)
  651
Coolant Capacity (engine only / with radiator) (lt)
  80/170
Air Filter
  Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
  140
Fuel Cons. Prime With %75 Load (lt/hr)
  104
Fuel Cons. Prime With %50 Load (lt/hr)
  73
Alternator Specifications
Manufacturer Mecc Alte
Alternator Made and Model ECO 40-2L/4 B
Frequency (Hz)Hz 50
Power (kVA)kVA 680
DESIGN   4 Pole,  Brushless
VOLTAGEV 400
Phase 3
A.V.R. DER1
Voltage Regulation(+/-) 0.5
Insulation System H
Protection IP23
Rated Power Factor 0.8
COOLING AIR (m³/min)m3 54
Size and Weight

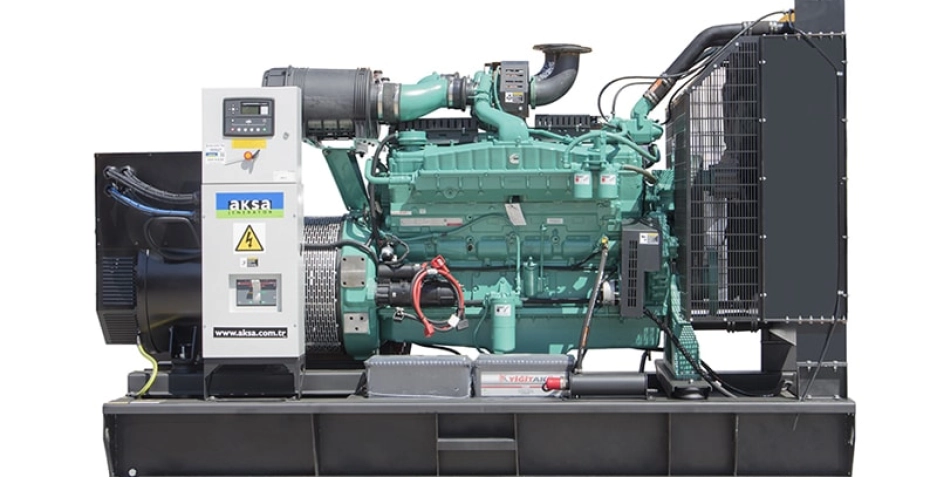

Open TypeDRY WEIGHT (kg.)
(kg.)
LENGHT
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
5470 3800 1550 2270 1000

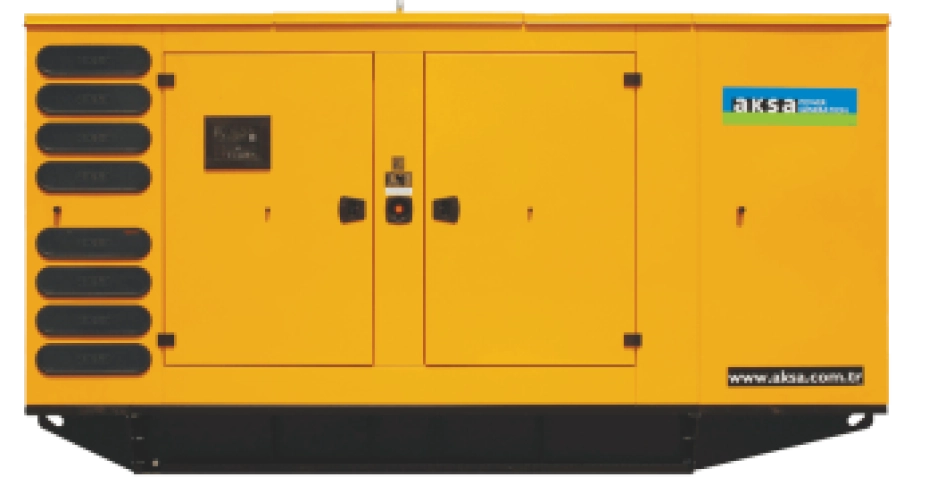

CANOPYDRY WEIGHT (kg.)
(kg.)
LENGHT
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
MS 85
7030 5300 1610 2660 1000
Standart Specifications

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
Generators Sets’ can take 100% load at one step according to NFPA110

Optional Equpiments

ENGINE
• Remote Radiator Cooling
• Fuel-Water Seperator Filter
• Oil heater

ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• Main line circuit breaker

CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )
• Paralel system with mains.
• Remote annunciator panel
• Remote relay output
• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH
• Three or four pole contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES
• Main Fuel Tank
• Automatic or manual fuel filling system
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Double wall chassis
• Supplied with oil and coolant - 30 °C
