Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
| Model Name | AC 2500 | ||
|---|---|---|---|
| Frequency (Hz) | 50 | ||
| Fuel Type | Diesel | ||
| Engine Made and Model | CUMMINS - QSK60-G13 4g TAL | ||
| Alternator Made and Model | Mecc Alte - ECO 46-1.5L/4 A | ||
| Control Panel Model | DSE 7320 | ||
| Canopy | AK 99 |
| VOLTAGE | STANDBY RATING (ESP) (ESP) | PRIME RATING (PRP) (PRP) | |||
|---|---|---|---|---|---|
| kVA | kW | kVA | kW | Amp | |
| 400/231 | 2500 | 2000.0 | 2000 | 1600.0 | 3608.55 |
| Engine | CUMMINS | ||
|---|---|---|---|
| Engine Model | QSK60-G13 4g TAL | ||
| NO. OF CYLINDERS AND BUILD | 16 cylinders - V type | ||
| BORE AND STROKE | mm | 159 X 190 | |
| TOTAL DISPLACEMENT | L | 60.2 | |
| Aspiration | Turbo Charged and After Cooled | ||
| COMPRESSION RATIO | 14.5:1 | ||
| RATED SPEED (RPM) | d/dk | 1500 | |
| OIL CAPACITY | L | 280 | |
| Standby Power (kW/HP) | 2164/2901 kW | ||
| Prime Power (kW/HP) | 1727/2315 kW | ||
| Block Heater QTY | |||
| 2 | |||
| Block Heater Power (Watt) | |||
| 3000 | |||
| Fuel Type | |||
| Diesel | |||
| Injection Type and System | |||
| Direct | |||
| Type of Fuel Pump | |||
| HPCR (High Pressure Common Rail) | |||
| Governor System | |||
| Electronic | |||
| Operating Voltage (Vdc) | |||
| 24 Vdc | |||
| Battery and Capacity (Qty/Ah) | |||
| 4x143 | |||
| Charge Alternator (A) | |||
| 55 | |||
| Cooling Method | |||
| Water Cooled | |||
| Coolant Capacity (engine only / with radiator) (lt) | |||
| 159/730.2 | |||
| Air Filter | |||
| Dry Type | |||
| Fuel Cons. Prime With %100 Load (lt/hr) | |||
| 399 | |||
| Fuel Cons. Prime With %75 Load (lt/hr) | |||
| 302 | |||
| Fuel Cons. Prime With %50 Load (lt/hr) | |||
| 210 | |||
| Manufacturer | Mecc Alte | |
|---|---|---|
| Alternator Made and Model | ECO 46-1.5L/4 A | |
| Frequency (Hz) | Hz | 50 |
| Power (kVA) | kVA | 2300 |
| DESIGN | 4 Pole, Brushless | |
| VOLTAGE | V | 400 |
| Phase | 3 | |
| A.V.R. | DER1 | |
| Voltage Regulation | (+/-) | 0.5 |
| Insulation System | H | |
| Protection | IP23 | |
| Rated Power Factor | 0.8 | |
| COOLING AIR (m³/min) | m3 | 135 |
| Open Type | DRY WEIGHT (kg.) (kg.) | LENGHT (mm.) | WIDTH (mm.) | HEIGHT (mm.) | TANK CAPACITY (lt.) (Lt.) |
|---|---|---|---|---|---|
 |
6000 | 2494 | 3320 | 2000 | |

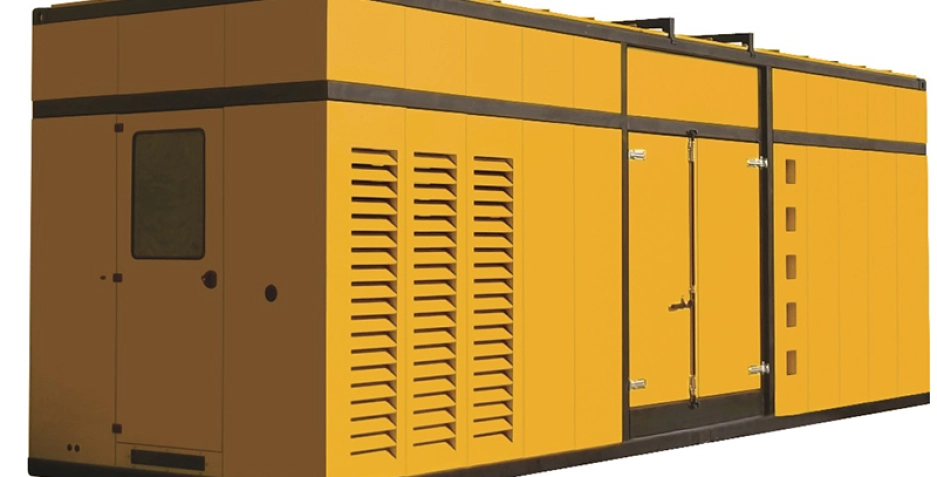

| CANOPY | DRY WEIGHT (kg.) (kg.) | LENGHT (mm.) | WIDTH (mm.) | HEIGHT (mm.) | TANK CAPACITY (lt.) (Lt.) |
AK 99 |
9000 | 2800 | 3300 | 2200 |
Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
Generators Sets’ can take 100% load at one step according to NFPA110
ENGINE
• Remote Radiator Cooling
• Electronic governor control
• Fuel-Water Seperator Filter
• Low water level alarm
• Oil heater
ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• PMG excitation + AVR
• Single Phase ( 4 lead)
• Main line circuit breaker
CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )
• Paralel system with mains.
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three Pole Contactor
• Four Pole Contactor
• Three or four pole contactor
• Motorlu Şalter
• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Double wall chassis
• Supplied with oil and coolant - 30 °C
• Battery isolating switch
• Battery heater
• Automatic transfer switch
