Disel generator

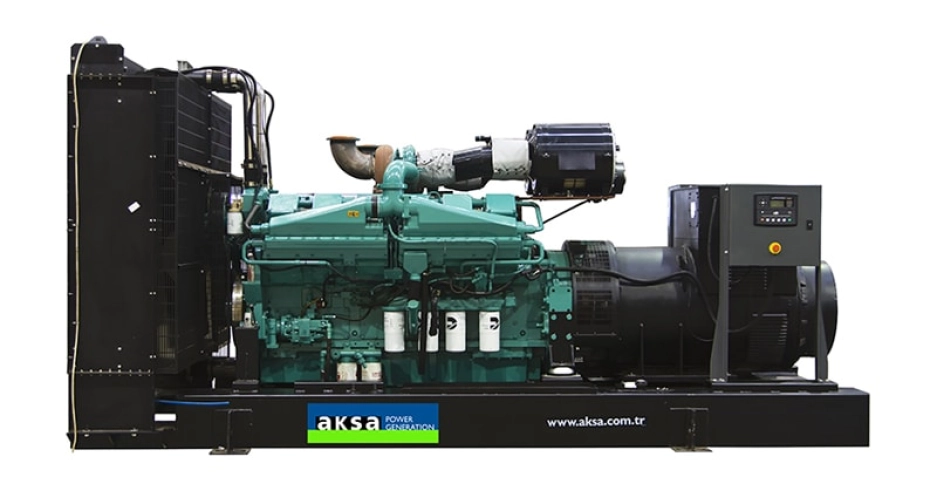

Aksa AC 2250

Model : AC 2250
Product : CUMMINS
CONTROL SYSTEM : DSE 7320
Introduction

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Сertificate
  TS ISO 8528
  CE
  SZUTEST
  2000/14/EC
General Characteristics
Model Name AC 2250
Frequency (Hz) 50
Fuel Type Diesel
Engine Made and Model CUMMINS - QSK60-G4
Alternator Made and Model Stamford - PI734F
Control Panel Model DSE 7320
Canopy AK 99 - External Removable Silencer
3 Phase, 50 Hz, PF 0.8
VOLTAGESTANDBY RATING (ESP) (ESP)PRIME RATING (PRP) (PRP)
kVAkWkVAkWAmp
400/231 2250 1800.0 2045 1636.0 3247.69
STANDBY RATING (ESP) (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528. Overload is not allowed.

PRIME RATING (PRP) (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation,in accordance with ISO 3046.
Engine Specifications
Engine CUMMINS
Engine Model QSK60-G4
NO. OF CYLINDERS AND BUILD 16 cylinders - V type
BORE AND STROKEmm 159 X 190
TOTAL DISPLACEMENTL 60.2
Aspiration Turbo Charged and After Cooled
COMPRESSION RATIO 14.5:1
RATED SPEED (RPM)d/dk 1500
OIL CAPACITYL 280
Standby Power (kW/HP) 1915/2567 kW
Prime Power (kW/HP) 1730/2319 kW
Block Heater QTY
  2
Block Heater Power (Watt)
  3000
Fuel Type
  Diesel
Injection Type and System
  Direct
Type of Fuel Pump
  Cummins HPI-TP
Governor System
  Electronic
Operating Voltage (Vdc)
  24 Vdc
Battery and Capacity (Qty/Ah)
  4x143
Charge Alternator (A)
  55
Cooling Method
  Water Cooled
Cooling Fan Air Flow (m3/min)
  2374
Coolant Capacity (engine only / with radiator) (lt)
  157/500
Air Filter
  Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
  394
Fuel Cons. Prime With %75 Load (lt/hr)
  291
Fuel Cons. Prime With %50 Load (lt/hr)
  200
Alternator Specifications
Manufacturer Stamford
Alternator Made and Model PI734F
Frequency (Hz)Hz 50
Power (kVA)kVA 2080
DESIGN   4 Pole,  Brushless
VOLTAGEV 400
Phase 3
A.V.R. MX341
Voltage Regulation(+/-) 1
Insulation System H
Rated Power Factor 0.8
COOLING AIR (m³/min)m3 161.4
Size and Weight
Open TypeDRY WEIGHT (kg.)
(kg.)
LENGHT
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
15500 5810 2280 2970 2000
CANOPYDRY WEIGHT (kg.)
(kg.)
LENGHT
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
AK 99 - External Removable Silencer
21100 9000 2800 3300 2200
Standart Specifications

Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
Generators Sets’ can take 100% load at one step according to NFPA110

Optional Equpiments

ENGINE
• Remote Radiator Cooling
• Fuel-Water Seperator Filter
• Oil heater

ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• Main line circuit breaker

CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )
• Paralel system with mains.
• Transition synchronization with mains
• Remote annunciator panel
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH
• Three or four pole contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES
• Main Fuel Tank
• Automatic or manual fuel filling system
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Supplied with oil and coolant - 30 °C
