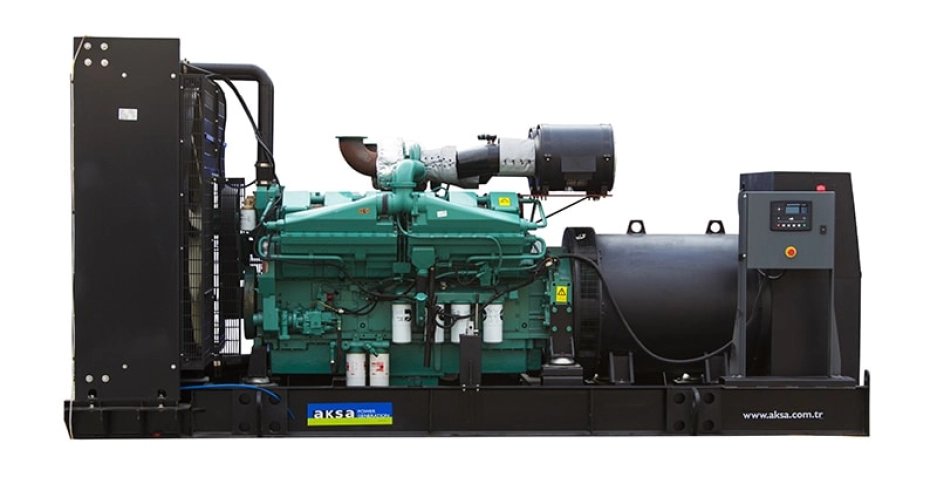

AC 1676
General specifications
- Model name AC 1676
- Frequency (Hz) 50
- Fuel type Diesel
- Engine brand and model CUMMINS KTA50GS8
- Control panel model DSE 7320
ISO8528
This generator set is designed in accordance with ISO 8528 standards.
SZUTEST
This generator set is designed and manufactured in accordance with the requirements of ISO 9001.
This generator set complies with CE certification requirements.
2000/14/EC
The sound insulation properties of the protective enclosure are tested in accordance with the European noise emission standards 2000/14/EC.
Water-cooled diesel engine, designed for heavy-duty applications
Radiator with mechanical fan
Protective guard for the fan and rotating parts
Electric starter and alternator battery charger
Lead-acid starting battery with cables
Engine enclosure
Fuel system hose
Single-bearing alternator, Class H
Silencer and flexible steel compensator supplied separately
Battery charger
Operation and installation manual
Steel base frame and isolators
Fuel tank
ENGINE
- Remote radiator
- Fuel/water separator filter
- Oil heater
ALTERNATOR
- Anti-condensation heater
- High-output alternator
- Output circuit breaker
CONTROL SYSTEM
- Automatic synchronization and power management system
- Parallel operation system with the external grid
- Grid synchronization system
- Remote control panel
- Remote alarm panel
- Emergency engine stop
- Remote control via modem
- Grounding connection point
- Charging ammeter
TRANSFER SWITCH
- Three- or four-pole contactor
- Three- or four-pole motorized circuit breaker
OTHER ACCESSORIES
- Charging current monitoring
- Automatic fuel transfer system
- Electric oil drain pump
- Fuel level sensors
- Silencer
- Canopy: weather protection and sound attenuation
- Air duct adapter (in front of the radiator)
- Motorized fresh air intake and exhaust louvers
- Sound attenuation air chamber
- Maintenance kit
- Maintenance kit (1500/3000 operating hours)
- Double frame
- Antifreeze and engine lubricating oil (for operation at -30°C)
- Automatic load transfer switch
