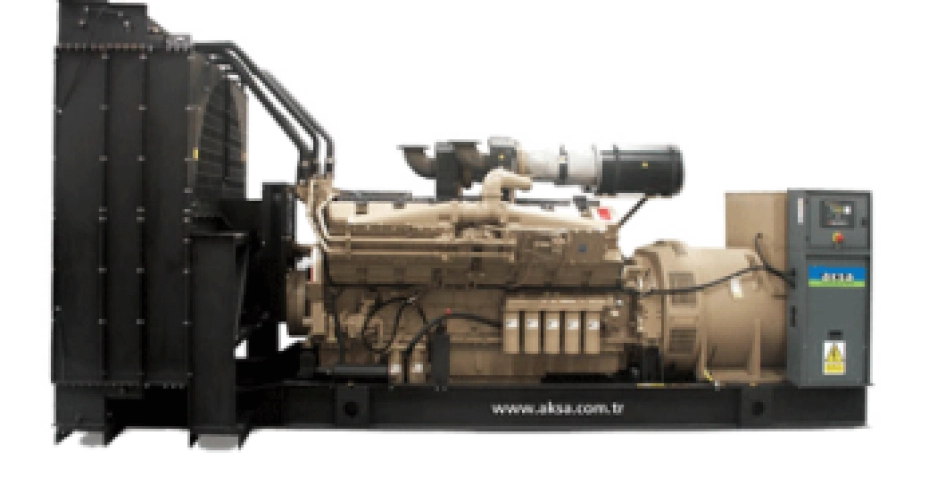

Water cooled diesel engine Radiator with mechanical fan Protective grille for rotating and hot parts Electric starter and charge alternator Starting battery (with lead acid) including rack and cables Engine coolant heater Steel base frame and anti-vibration isolators Spare external fuel tank (open set) Flexible fuel connection hoses Single bearing, class H alternator Industrial exhaust silencer and steel bellows supplied separately Static battery charger Manual for application and installation
Voltage | Standby Rating (ESP) | Prime Rating (PRP) | |||
---|---|---|---|---|---|
kVA | kW | kVA | kW | Amp | |
400/230 | 1,675 | 1,340 | 1,500 | 1,200 | 2,165 |
Standby Rating (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528. Overload is not allowed.
Prime Rating (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation,in accordance with ISO 3046.
Manufacturer | Cummins | ||||||||
---|---|---|---|---|---|---|---|---|---|
Model | KTA 50 GS8 | ||||||||
No. of Cylinders and Build | 16-cylinder, V - Type | ||||||||
Aspiration and Cooling | Turbo Charged and One Pump Two Loop | ||||||||
Maximum Standby Power | 1500 rpm | 1,429 kW[1,915 HP] | |||||||
Total Displacement | L | 50.3 | |||||||
Bore and Stroke | mm | 159 x 159 | |||||||
Compression Ratio | 14,9:1 | ||||||||
Rated Speed (rpm) | rpm | 1500 | |||||||
Governor | Electronic | ||||||||
Oil Capacity | L | 204 | |||||||
Coolant Capacity | L | 420 | |||||||
Intake Air Flow | m³ /min. | 99.3 | |||||||
Radiator Cooling Air | m³ /min. | 2,631 | |||||||
Exhaust Gas Flow | m³ /min. | 261 | |||||||
Exhaust Gas Temperature | ° C | 510 | |||||||
Start System | 24 | ||||||||
Fuel Consumption | %100 (L/h) | 309 | %75 (L/h) | 238 | %50(L/h) | 167 |
Make | Stamford | |
---|---|---|
Model | PI 734C | |
Frequency | Hz | 50 |
Power | Kva | 1,550 |
Design | Brushless, 4 poles | |
Cos Phi | 0.8 | |
Phase | 3 | |
Voltage | V | 400/230 |
Current | A | 2,237 |
Insulation Class | H | |
Temperature | H | |
Stator | 2 / 3 steps | |
Rotor | Single Bearing System, Flexible Disc | |
Excitation System | Electronic ( AVR ) |
Open Type | Dry Weight (kg.) | Lenght (mm.) | Width (mm.) | Height (mm.) | Tank Capacity(L) |
---|---|---|---|---|---|
![]() |
10,100 | 5,449 | 1,950 | 2,450 | 2,000 |
Canopy | Dry Weight (kg.) | Lenght (mm.) | Width (mm.) | Height (mm.) | Tank Capacity(L) |

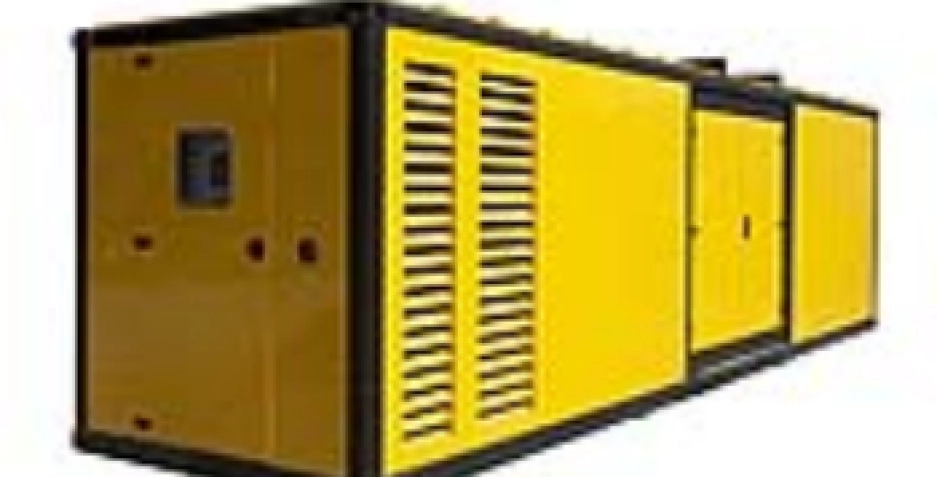

AK 98 ![]() |
15100 | 9,000 | 2,270 | 2550/3210 | 1,900 |
Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
ENGINE
ALTERNATOR
CONTROL SYSTEM
TRANSFER SWITCH
OTHER ACCESSORIES
