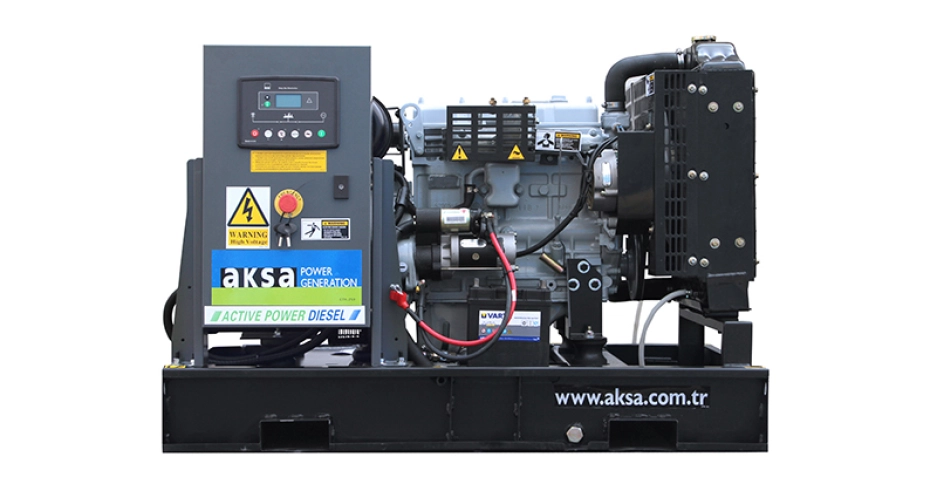

APD 35 A

Engine: AKSA

Control panel model: DSE 6120

Frequency: 50 Hz

Prime power (PRP) 32 kVA 25.6 kW

Standby power (ESP) 35 kVA 28 kW

Download PDF

General specifications

Model name APD 35 A
Frequency (Hz) 50
Fuel type Diesel
Engine brand and model AKSA A4CRX36
Control panel model DSE 6120

Standby power (ESP): Used to supply power to a varying electrical load in the event of a reliable utility power failure. ESP is compatible with ISO 8528. Overload is not permitted.

Prime power (PRP): Used for supplying electrical power to a varying electrical load for an unlimited number of annual operating hours. PRP is compatible with ISO 8528. In accordance with ISO 3046, 1 hour of permissible 10% overload is allowed during every 12-hour operating period.

For stationary installations used as a backup or continuous power source, Aksa generator sets provide reliable and highly efficient operation. All manufactured generator sets undergo preliminary product testing and production testing at the factory.

Certificates:

- TS ISO 8528

- TS ISO 9001-2008

- CE - SZUTEST

- 2000/14/EC

- Diesel engine with water cooling, designed for heavy-duty applications

- Radiator with mechanical fan

- Protective guard for the fan and rotating parts

- Electric starter and alternator battery charger

- Lead-acid starting battery with cables

- Engine enclosure

- Base frame, integrated fuel tank, and anti-vibration mounts

- Fuel system hoses

- Single-bearing alternator, Class H

- Silencer and flexible steel compensator supplied separately

ENGINE

Fuel/water separator filter

Oil heater

ALTERNATOR

Anti-condensation heater

Output circuit breaker

CONTROL SYSTEM

Automatic synchronization and power management system; parallel operation system with the external grid

Grid synchronization system

Remote alarm panel

Emergency engine stop

Remote control via modem

Grounding connection point

Charging ammeter

APD 35 A
