APD 165 A
General specifications
- Model name APD 165 A
- Frequency (Hz) 50
- Fuel type Diesel
- Engine brand and model AKSA A6CRX65T
- Control panel model DSE 6120

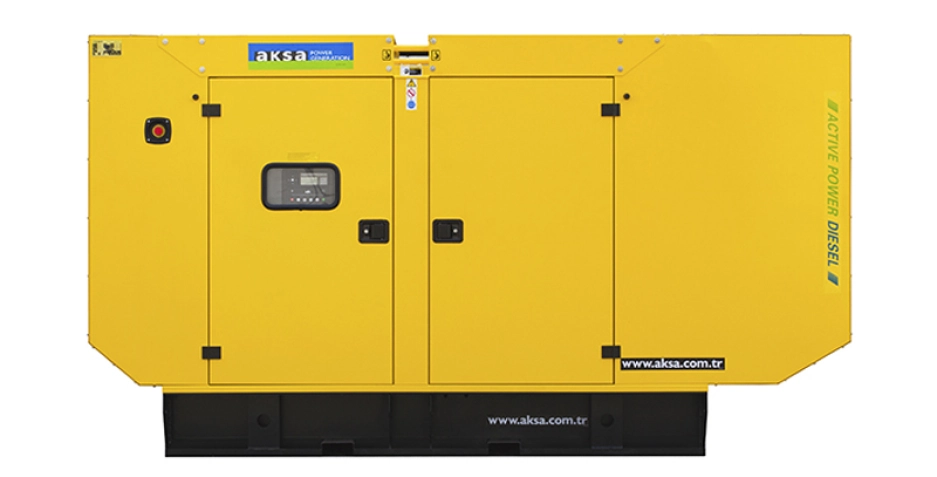

Soundproof and all-weather enclosures for Aksa generator sets meet noise insulation requirements, provide optimal protection against adverse weather conditions, and are designed by our acoustic engineers. Our modular soundproof containers provide easy access for servicing, as well as easy interchangeability of components, allowing repairs to be carried out on site. The enclosures and containers are designed to optimize the cooling performance of the generator set, ensuring reliable operation at the rated specifications of the generator set.
Certificates:
- TS ISO 8528
- TS ISO 9001-2008
- CE
- SZUTEST
- 2000/14/EC
Microprocessor-based control.
Easy information reading via a 132 x 64 pixel LCD display.
Module programming via the front panel, PC, or software.
Membrane keypad with soft keys and 5-button menu navigation.
Remote access via RS232, RS485, and Ethernet, with report generation.
Fault/event display (50 events) in the event log with date and time stamps.
Engine load status with multiple date and time settings and a maintenance program.
Control buttons: Stop, Manual, Auto, Test, Start, Mute/Silence, and Lamp Test.
Generator Transfer, Mains Transfer, and Menu Navigation.
Engine block water heater control.
Engine
Electronic engine speed governor
Fuel/water separator filter
Low coolant level alarm
Oil heater
Alternator
Remote control panel
High-output alternator
Output circuit breaker
Control System
Remote control panel
Grounding connection point
Charging ammeter
Automatic Transfer Switch
Three- or four-pole contactor
Three- or four-pole motorized circuit breaker
Other Accessories
Charging current monitoring
Automatic fuel transfer system
Manual oil drain pump
Electric oil drain pump
Fuel level sensors
Silencer
Canopy: weather protection and sound attenuation
Air duct adapter (in front of the radiator)
Motorized fresh air intake and exhaust louvers
Sound attenuation air chamber
Trailer
Maintenance kit
Maintenance kit (1500/3000 operating hours)
Double frame
Antifreeze and engine lubricating oil (for operation at -30°C)
Battery protection switch
