Disel generator

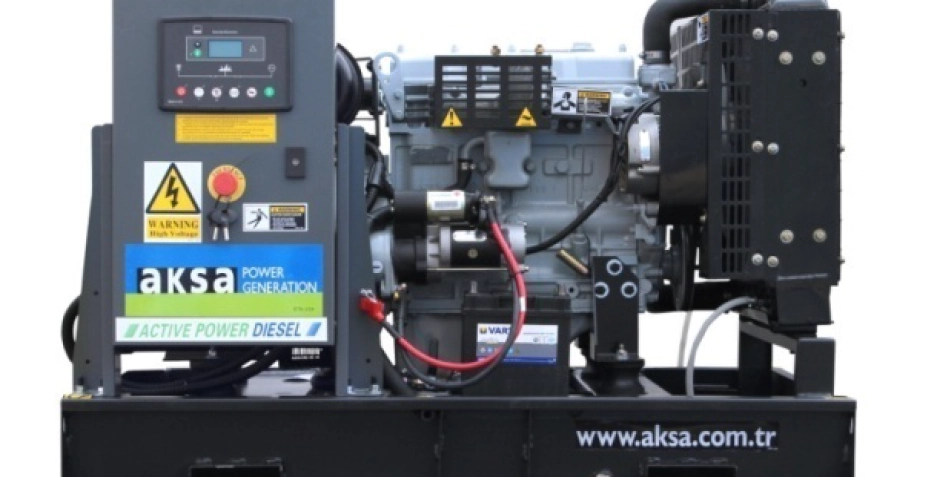

Aksa APD 110 A

Model : APD 110 A
Product : AKSA
CONTROL SYSTEM : DSE 6120
Introduction

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Сertificate
  TS ISO 8528
  CE
  SZUTEST
  2000/14/EC
General Characteristics
Model Name APD 110 A
Frequency (Hz) 50
Fuel Type Diesel
Engine Made and Model AKSA - A4CRX46TI
Alternator Made and Model Aksa - AK 480
Control Panel Model DSE 6120
Canopy ASM 5
3 Phase, 50 Hz, PF 0.8
VOLTAGESTANDBY RATING (ESP) (ESP)PRIME RATING (PRP) (PRP)
kVAkWkVAkWAmp
400/231 110 88.00 100 80.00 158.78
STANDBY RATING (ESP) (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528. Overload is not allowed.

PRIME RATING (PRP) (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation,in accordance with ISO 3046.
Engine Specifications
Engine AKSA
Engine Model A4CRX46TI
NO. OF CYLINDERS AND BUILD 4 cylinders - in line
BORE AND STROKEmm 112 X 135
TOTAL DISPLACEMENTL 5,32
Aspiration Turbo Charged and After Cooled
COMPRESSION RATIO 17.0:1
RATED SPEED (RPM)d/dk 1500
OIL CAPACITYL 15
Standby Power (kW/HP) 100/130 kW
Prime Power (kW/HP) 92/108 kW
Fuel Type
  Diesel
Injection Type and System
  Direct
Type of Fuel Pump
  PM pump
Governor System
  Electronic
Operating Voltage (Vdc)
  24 Vdc
Cooling Method
  Water Cooled
Cooling Fan Air Flow (m3/min)
  111
Coolant Capacity (engine only / with radiator) (lt)
  48
Air Filter
  Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
  18.6
Fuel Cons. Prime With %75 Load (lt/hr)
  14.3
Fuel Cons. Prime With %50 Load (lt/hr)
  9.8
Alternator Specifications
Manufacturer Aksa
Alternator Made and Model AK 480
Frequency (Hz)Hz 50
Power (kVA)kVA 100
DESIGN   Brushless
VOLTAGEV 400
Phase 3
A.V.R. SX460
Voltage Regulation(+/-) 1%
Insulation System H
Protection IP22
Rated Power Factor 0.8
COOLING AIR (m³/min)m3 30,84
Size and Weight
Open TypeDRY WEIGHT (kg.)
(kg.)
LENGHT
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)
1370 2150 1000 1511 195
CANOPYDRY WEIGHT (kg.)
(kg.)
LENGHT
(mm.)
WIDTH
(mm.)
HEIGHT
(mm.)
TANK CAPACITY (lt.) (Lt.)

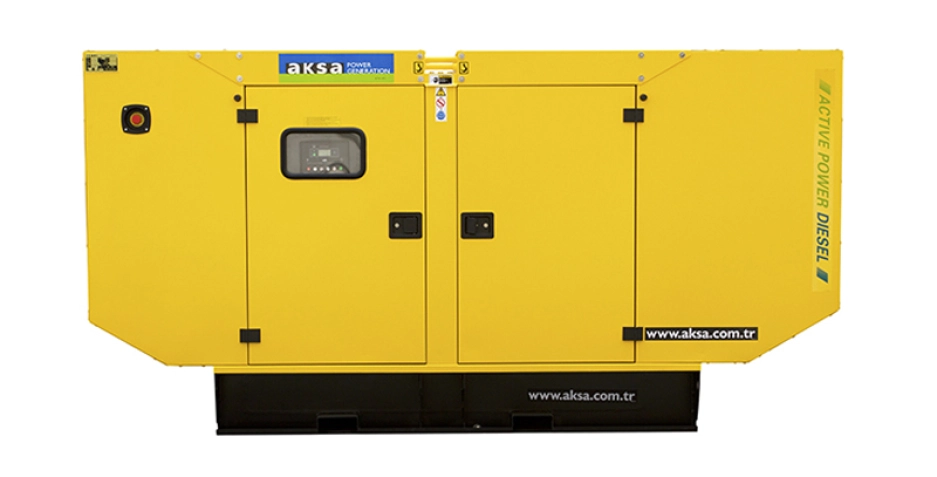

ASM 5
1790 3116 1063 1715 195
Standart Specifications

Heavy duty, water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Two bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation

Optional Equpiments

ENGINE

  • Oil heater

ALTERNATOR

  • Anti-Condensation Heater
  • Main line circuit breaker

CONTROL SYSTEM

  • Earth fault, single set
  • Charge Ammeter

TRANSFER SWITCH

  • Three or four pole contactor
  • Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

  • Main Fuel Tank
  • Automatic or manual fuel filling system
  • Manual oil drain pump
  • Low and high fuel level alarm
  • Enclosure: weater protective or sound attenuated
  • Trailer
  • Tool kit for maintenance
